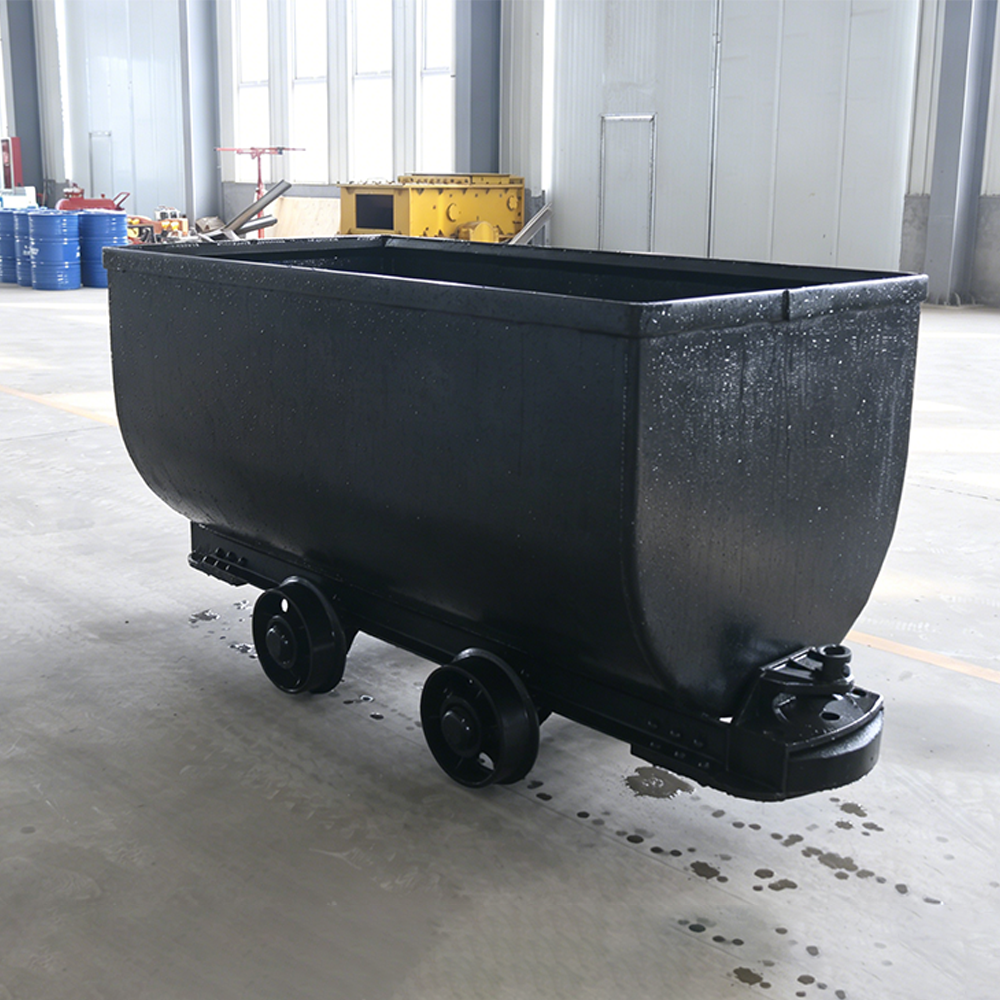

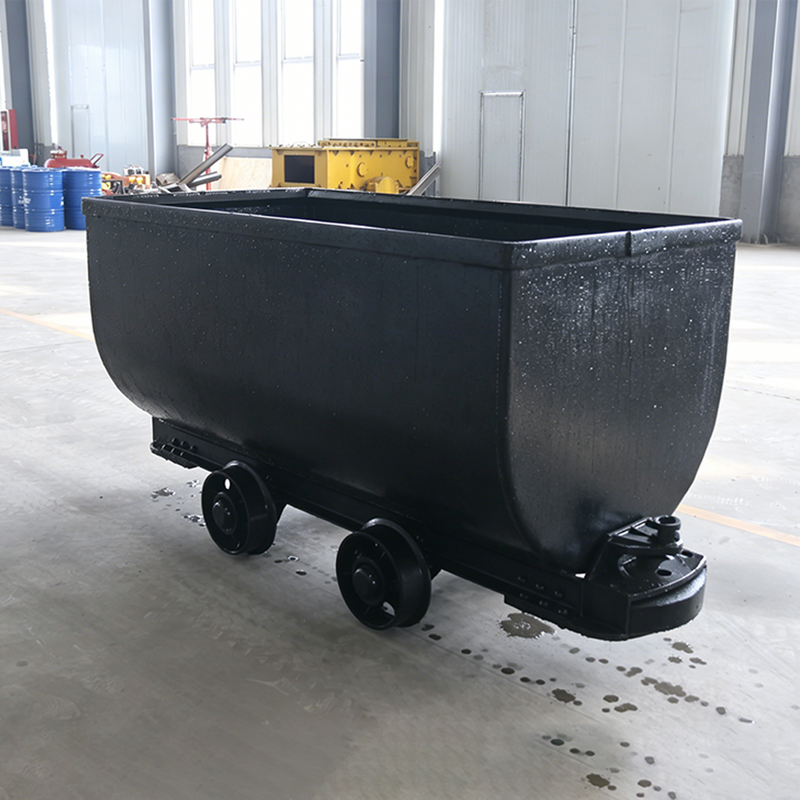

MGC1.1-6 Fixed Mine Car
ABOUT US
Application: On narrow rail gauge
Service: Transporation in mining, tunneling and related construction.
Fixed mine car is the transportation equipment suitable for ground or underground mining. Transporting the coal , waste rocks and other material along the tunnel or surface industrial site
Load capacity 1 ton, 1.5ton or 3 ton can be available
Service: Transporation in mining, tunneling and related construction.
Fixed mine car is the transportation equipment suitable for ground or underground mining. Transporting the coal , waste rocks and other material along the tunnel or surface industrial site
Load capacity 1 ton, 1.5ton or 3 ton can be available
-
MGC1.1-6
-
China Coal Group
| Quantity: | |
|---|---|
Product Description
Fixed mine wagon transportation tool for moving coal, ore, waste rock and material in the process of mining, dragged by a locomotive or winch.Mechanical loading demands the largest possible car consistent with haulage and loading conditions so as to reduce the number of car changes and time delay. When the car must be designed for the colliery, shaft size may limit the car length and width. When a new mine is opened, the car size is often chosen arbitrarily, subject to physical conditions as far as can be determined.
Fixed mine wagon is a major transport equipment for coal and gangue transportation in coal mine surface and underground roadway. It is also a kind of short-distance transportation equipment for other non-metallic ore, bridge construction, railway engineering, transmission guide digging and other construction transportation projects such as elm sand and soil, gravel and other materials. Fixed series of mine car has a simple structure, sturdy and durable, resistance to our company's production number of small, large load-bearing capacity, easy maintenance, etc., mine car unloading using the overturning machine will turn the whole car body. Mainly used in coal mines, underground transportation of coal, gangue, materials, etc.. Can also be used for other mines or underground engineering transport materials. Its general by the box, frame, axle, buffer and connector and so on. The main products are: 0.5t, 1 t, 2 t, 3 t.
Fixed mine car box and frame fixed coupling, must use the turning machine to turn over the mine car unloading. Its basic composition is the box, frame, buffer, coupler and walking mechanism. The frame is a metal structure, which can withstand the traction force, braking force, collision force between the mine cars and the impact of the rails, and the buffers are installed at both ends of the frame to moderate the impact between the two cars. The coupler is the part that connects the locomotive and the mine car, commonly used are the pin chain ring and the swing chain, and the large mine car adopts the automatic hook that has the function of buffer. Traveling mechanism is two wheel pairs consisting of 4 wheels and 2 axles. The number of wheel pairs should generally be increased when the total sum of mine car and material exceeds 20 tons. For the mine car with more than two wheel pairs, the two wheel pairs are formed into a car with a turntable for the convenience of passing curves, and this car is called a bogie.
When the car must be designed for the colliery, shaft size may limit the car length and width. When a new mine is opened, the car size is often chosen arbitrarily, subject to physical conditions as far as can be determined.
By the use of side and end boards, the miner can remove these boards to shovel coal from the end or side without interference. After which the boards are raised and a topping is placed on the cars. In mines where the physical conditions do not limit the car size, this is usually determined by the cars use. Anthracite mines employing loading chutes from breasts use high, large capacity cars.
1. Material: cast steel or cast iron;
2. Constitute: two wheels, one axle, four bearings, and other parts;
3. Loading capacity: 1-25 tons, each one is OK;
4. Wheel sets gauge: 600mm, 762mm, 900mm, and etc;
5. The type of the wheels: hollow wheel sets and solid wheel sets;
6. The diameter of the wheels: 300mm, 350mm, 400mm, 450mm;
7. The material of the axle: 45# steel, or Q235;
8. The quantity of each wheel's bearing: two;
9. The material of the bearing: LYC32212, conical roller bearing, deep groove ball bearing;
Model | MGC1.7-6 | MGC1.7-9 | MGC1.1-6 | MGC3.3-9 | |
Volume(m³) | 1.7 | 1.7 | 1.1 | 3.3 | |
Theoretical | Capacity(T) | 1.5 | 1.5 | 1 | 3 |
Max. Load(T) | 2.7 | 2.7 | 1.8 | 5.3 | |
Gauge(mm) | 600 | 900 | 600 | 900 | |
Wheel Base(mm) | 750 | 600 | 550 | 1100 | |
Wheel Diameter (mm) | 300 | 350 | 300 | 350 | |
Traction(KN) | 60 | 60 | 60 | 60 | |
Traction Height(mm) | 320 | 320 | 320 | 320 | |
Overall Size(L*W*H) | 2400x1050x1200 | 2100x1150x1300 | 2000x880x1150 | 3450x1320x1300 | |
Weight(≤kg) | 720 | 970 | 610 | 1320 | |
Product Description
In order to ensure the normal operation and prolong the service life of the stationary mine car, daily inspection and monthly maintenance are required, and it must be ensured that the wheels are free from stalling and non-rotation.
The wheel pair should be filled with lubricant regularly according to the daily maintenance requirements to ensure good lubrication, and other appurtenances to ensure sufficient capacity; check whether the anti-release pins are bent, cracked and other defects; check whether the bolts on the fasteners are loose, etc. to prevent accidents.
