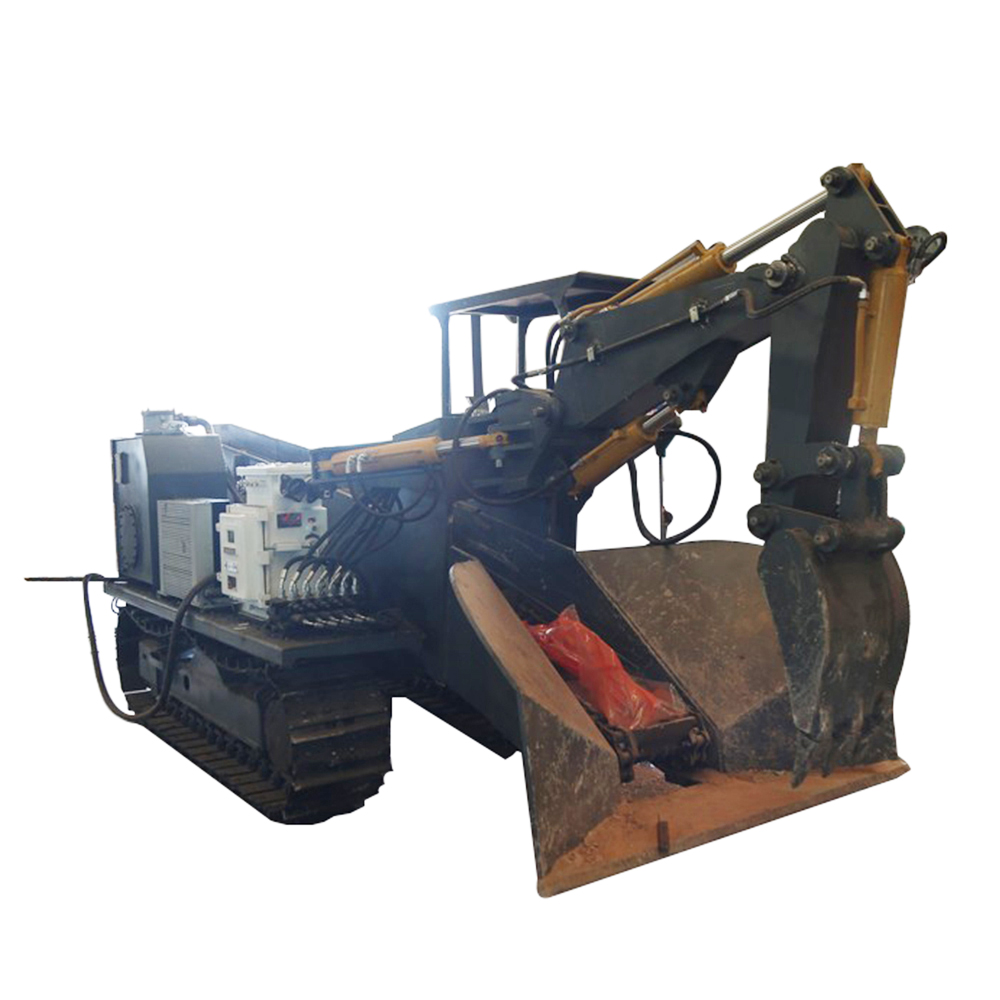

ZWY-60 Mining Crawler Tunnel Mucking Machine crawler mucking rock loader, special sloping type ≤ 32 degrees, is a continuous production high-efficiency ore-out equipment, mainly used for excavation of mine rock roadway and semi-coal rock roadway, also It can be used for loading operations in diversion tunnels, railway tunnel construction, and national defense cavern construction.
-
Underground Explosion-proof
-
High Working Efficiency Energy Saving
| Quantity: | |
|---|---|
Product Description
Mining Crawler Tunnel Mucking Machine crawler mucking rock loader, special sloping type ≤ 32 degrees, is a continuous production high-efficiency ore-out equipment, mainly used for excavation of mine rock roadway and semi-coal rock roadway, also It can be used for loading operations in diversion tunnels, railway tunnel construction, and national defense cavern construction.
Scraper mucking machine with good quality is the high efficiency mining equipment for continuous production ,mainly used for the excavation of rock roadway and semi coal rock roadway, and for the loading operation in the water diversion tunnel construction, Hot Sale Table Top sale machine Scraper mucking loader with good quality can be realizing the mechanization of coal mine mucking, the driving speed has been greatly improved.
The slag raking machine is applicable to the construction machinery of tunnel excavation, mining engineering, water conservancy engineering and other projects, small section headrace tunnel, and mining slag (ore) discharging machinery. The machine is mainly used for the collection, transportation and loading of gravel and soil in some non explosive dangerous mines such as phosphorus ore and metal non-metallic ore with narrow production and operation space and small production scale.
It is mainly used for the collection and loading of crushed stone materials in various mines such as coal mine, phosphate mine, iron mine, copper mine, gold mine, silver mine, lead and zinc mine, railway, highway, water conservancy, national defense and other tunnel projects, as well as the loading of open air bulk materials. It is a production device that combines the manipulator with the conveyor and integrates the functions of slag raking and truck loading. It adopts an electric full hydraulic control system and is characterized by safety, environmental protection, low energy consumption and high efficiency.
Slag raking machine is an indispensable advanced mining equipment for mining enterprises, which replaces manual operation. It is a substitute product for manual and other machinery to load all kinds of blasted slag and stone onto transport vehicles, filling the gap of no mechanical operation in a narrow space.
The slag raking machine has changed the status of low speed, high safety risk and high cost that the original construction is semi mechanized, intermittent slag discharge and shipment and requires a lot of manual cooperation.
The slag raking machine integrates raking, digging, raking, loading, transporting, unloading and walking, and has six functions of walking, digging, collecting, transporting, loading, and clearing the site, with continuous and efficient production. It is to ensure high yield, high efficiency, low safety risk and low cost in the construction of narrow and small sites; Enhance market competitiveness; Improve the production schedule and quickly occupy the market; Achieve visible results such as overfulfilling the task schedule in advance.
The slag raking machine transports 80 cubic meters, 100 cubic meters, 120 cubic meters, 150 cubic meters, 180 cubic meters, 200 cubic meters, 220 cubic meters, 260 cubic meters, 312 cubic meters, 330 cubic meters of ore and soil materials per hour, and other ordinary and large slope types; Gear pump and high-pressure pump; Electric and oil electric; Explosion proof; Tyre type, track type and crawler type.
Slag raking machine is a new scientific and technological product that replaces manual work and intermittent machinery with mechanical equipment for underground excavation, excavation and transportation, and is the guarantee of safe and rapid underground engineering construction. It belongs to engineering machinery, tunnel mining equipment, underground excavation equipment, tunnel engineering equipment, railway tunnel engineering equipment, highway tunnel engineering equipment, power station headrace tunnel engineering equipment, mine mining equipment, mining tunnel tunneling equipment, water conservancy project diversion tunnel tunneling equipment, culvert tunneling equipment, coal mine tunnel tunneling equipment, metal mine tunneling equipment, iron ore tunneling equipment, phosphorus ore shipping equipment, manganese ore mining and loading equipment Transportation equipment, excavation equipment, conveying equipment, loading and unloading equipment, construction equipment, mining equipment, shoveling equipment, shoveling machinery, fully mechanized mining equipment, earthwork machinery, stonework machinery, concrete machinery, tunnel and underground equipment, road construction machinery, transfer equipment, tunnel machinery, material handling machinery, and coal mine explosion-proof equipment. It has a wide range of uses, and is most suitable for working in narrow spaces.
Safe operation of slag raking machine
（1） The operation of the slag raking machine is a technical activity, which prompts that non professionals must not operate without training, and trained staff must drop the bucket during non working hours to prevent accidents.
（2） Before going on or off duty, the safety related parts must be checked to ensure safe operation and ensure the equipment in good working condition.
（3） Keep in mind the corresponding work of each handle, and pull the handle steadily.
（4） When the slag raking machine is working, no one is allowed to be within the safe distance. In case of failure or abnormal noise, stop the machine immediately for inspection and cut off the main power supply.
Product Parameters
Model | ZWY-60 | ZWY-80 | ZWY-120 | ZWY-180 |
Excavating Width(mm): | 3870 | 4800 | 4200 | 6500 |
Uninstall Length(mm): | 1530 | 1850 | 1600 | 2800 |
Excavating Height(mm): | 2300 | 2800 | 1800-2700 | 4400 |
Excavating Depth(mm): | 450 | 500 | 450 | 800 |
Unload Height(mm): | 1400(Changeable) | 1700(Changeable) | 1100(Changeable) | 2693(Changeable) |
Minimum Loading Height(mm): | 1350(Changeable) | 1350(Changeable) | 1200-1600(Changeable) | 1700(Changeable) |
Unload Distance(mm): | 1600(Changeable) | 1700(Changeable) | 1600(Changeable) | 3500(Changeable) |
Maximum Rotation Angle(°): | ±50 | ±50 | ±50 | ±50 |
Weight(T): | 8.5 | 8.2 | 5.8 | 18.6 |
Machine Dimension: | 5000x1490x1650 | 6100x1700x1800 | 5600x1650x1700 | 13088x2350x2600 |
Loading Capacity(m³/hour): | 60 | 80 | 60 | 180 |
Min Turning Radius(mm): | 4000 | 5500 | 4600 | 12000 |
Climbing Ability(°): | ≤20 | ≤25 | ≤10 | ≤25 |
Travelling Speed(m/min): | 2-4.5 | 2-4.5 | 2-4.5 | 0.54 |
Motor Power(kw): | 22 | 30 | 18.5/22 | 55 |
Max. Material passing Size(LxWxH) (mm): | 800x550x500 | 650x700x650 | 810x580x420 | 800x780x800 |
Ground Clearance(mm): | 200 | 230(Changable) | 200 | 380 |
Applied Working Section(W*H) (m): | ≥2x2 | ≥2.2x2.2 | ≥2x2 | ≥3.8x3.8 |
Nominal Working Pressure(Mpa): | 20 | 25 | 20 | 32 |
Conveying Mode: | ScraperLeather Belt | Scraper/Leather Belt | Scraper/Leather Belt | Scraper/Leather Belt |
