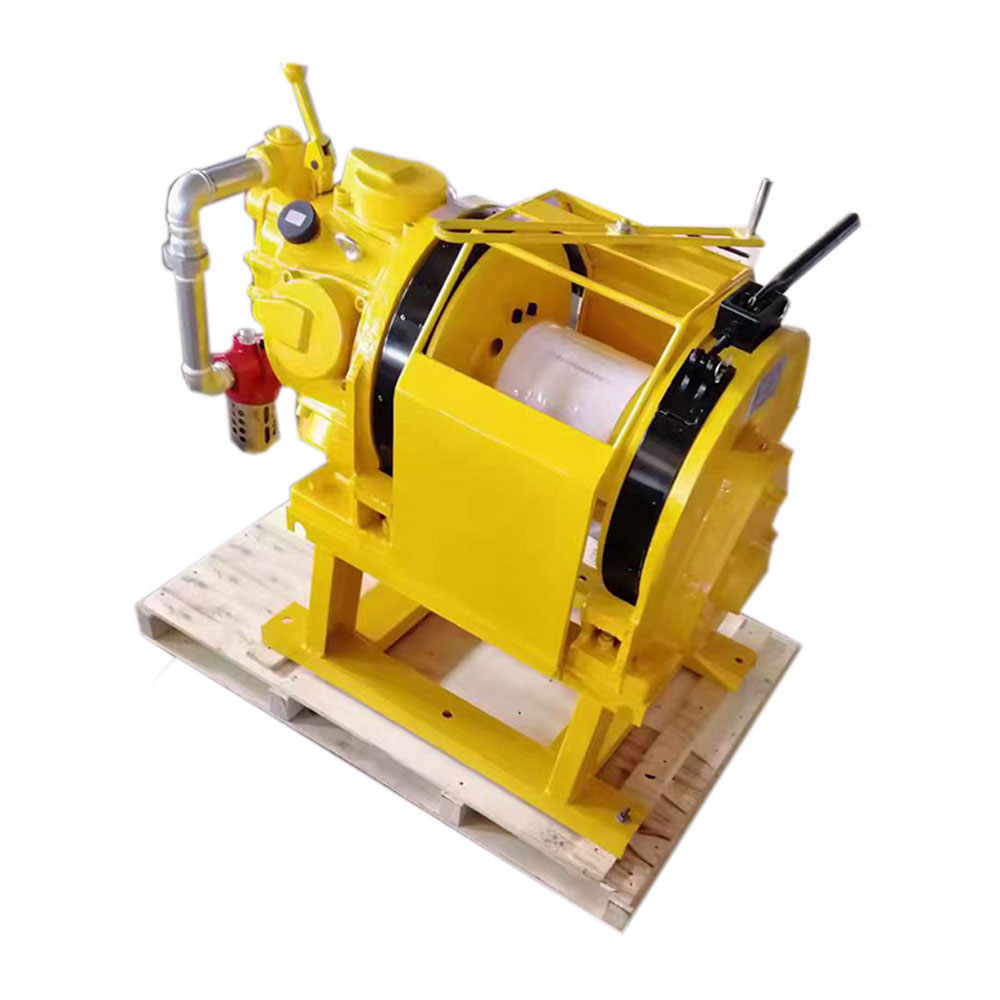

JQH-5* 48 Marine Pneumatic Winch
ABOUT US
The motor and reducer of the air winch are respectively connected to both sides of the drum, making the winch small in size, light in weight, compact in structure, simple in operation, convenient in maintenance, and capable of stepless speed regulation within a certain range. The braking of the winch is realized by motor braking, and the braking is reliable. Manual operation can be carried out without compressed air.
The motor and reducer of the air winch are respectively connected to both sides of the drum, making the winch small in size, light in weight, compact in structure, simple in operation, convenient in maintenance, and capable of stepless speed regulation within a certain range. The braking of the winch is realized by motor braking, and the braking is reliable. Manual operation can be carried out without compressed air.
-
With Ce Certificate
-
High Working Efficiency Energy Saving
| Quantity: | |
|---|---|
Product Description
The motor and reducer of the air winch are respectively connected to both sides of the drum, making the winch small in size, light in weight, compact in structure, simple in operation, convenient in maintenance, and capable of stepless speed regulation within a certain range. The braking of the winch is realized by motor braking, and the braking is reliable. Manual operation can be carried out without compressed air.
Pneumatic Air Winch is driven by air motor,though gear reduction organization to drive drum,accomplish the traction and hoist function.
Pneumatic Air Winch bear compact structure, easy operation,safe and reliable,easy maintenance,smooth operation, stepless speed change.
Pneumatic Air Winch bear compact structure, easy operation,safe and reliable,easy maintenance,smooth operation, stepless speed change.
Air Winch as explosion proof traction,hoist power equipment,it is especially us in mining,oil field,geology drilling work, highly combustible and explosion hazard place.
Air Winch as explosion proof traction,hoist power equipment,it is especially us in mining,oil field,geology drilling work, highly combustible and explosion hazard place.Wire Rope Winch Offshore Air Winch is a kind of manual operated single drum type air winch. Air Winch adopts compressed air as air winch's power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.
Pneumatic Air Winch bear compact structure, easy operation,safe and reliable,easy maintenance,smooth operation, stepless speed change.
Air Winch as explosion proof traction,hoist power equipment,it is especially us in mining,oil field,geology drilling work, highly combustible and explosion hazard place.
Wire Rope Winch Offshore Air Winch is a kind of manual operated single drum type air winch. Air Winch adopts compressed air as air winch's power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.
Wire Rope Winch Offshore Air Winch is a kind of manual operated single drum type air winch. Air Winch adopts compressed air as air winch's power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.
Product Parameters
| Model | JQHS-20 *18 | JQHS-30* 12 | JQHS-50* 12 | JQHS-100* 8 | JQH-5* 48 | JQH-10* 24 |
| Rated Pulling force | 20KN | 30KN | 50KN | 100KN | 5KN | 10KN |
| The maximum speed of wire rope | 18m/min | 12m/min | 12m/min | 8m/min | 48m/min | 24m/min |
| Rated Power | 5.6kw | 12kw | 16kw | 30kw | 2.6kw | 3.6kw |
| Rated Intake Air Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Rated Air consumption | 5m3/min | 10m3/min | 12.7m3/min | 24m3/min | 2.0m3/min | 2.3m3/min |
| Rope capacity | 100m | 200m/400m | 200m/400m | 200m | 80m | 80m |
| The diameter of Wire Rope | 12mm | 16mm | 18.5mm | 24mm | 8mm | 10mm |
| Overall size | 560* 360* 460mm | 1250* 500* 700mm | 1300* 520* 760mm | 1500* 720* 920mm | 560* 360* 420mm | 590*380* 460mm |
| Weight | 200kg | 500kg | 550kg | 1100kg | 130kg | 160kg |
