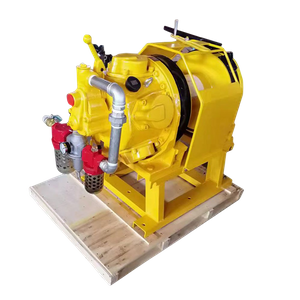

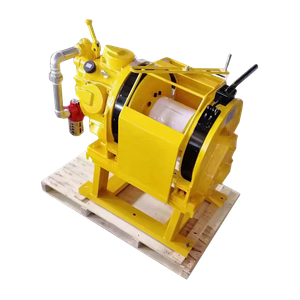

JQHS-30* 12 Pneumatic Air Winch
ABOUT US
The air winch is driven by compressed air instead of electricity. The air is fed from the air compressor to the motor driver of the air winch through the air pipeline. When activated, the motor driving the air winch will start to supply power to the cable drum and effectively lift or lower the connected load.
The air winch is driven by compressed air instead of electricity. The air is fed from the air compressor to the motor driver of the air winch through the air pipeline. When activated, the motor driving the air winch will start to supply power to the cable drum and effectively lift or lower the connected load.
-
With Ce Certificate
-
High Working Efficiency Energy Saving
| Quantity: | |
|---|---|
Product Description
The air winch is driven by compressed air instead of electricity. The air is fed from the air compressor to the motor driver of the air winch through the air pipeline. When activated, the motor driving the air winch will start to supply power to the cable drum and effectively lift or lower the connected load.
Pneumatic Air Winch is driven by air motor,though gear reduction organization to drive drum,accomplish the traction and hoist function.
Pneumatic Air Winch bear compact structure, easy operation,safe and reliable,easy maintenance,smooth operation, stepless speed change.
Pneumatic Air Winch bear compact structure, easy operation,safe and reliable,easy maintenance,smooth operation, stepless speed change.
Air Winch as explosion proof traction,hoist power equipment,it is especially us in mining,oil field,geology drilling work, highly combustible and explosion hazard place.
Winch, a small and light lifting equipment that uses a drum to wind steel wire rope or chain to lift or pull heavy objects, is also called a winch.
The winch can lift the load vertically, horizontally or obliquely. Hoists are divided into manual hoists, electric hoists and hydraulic hoists. Mainly electric hoist
Air Winch as explosion proof traction,hoist power equipment,it is especially us in mining,oil field,geology drilling work, highly combustible and explosion hazard place.Wire Rope Winch Offshore Air Winch is a kind of manual operated single drum type air winch. Air Winch adopts compressed air as air winch's power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.
Pneumatic Air Winch bear compact structure, easy operation,safe and reliable,easy maintenance,smooth operation, stepless speed change.
Air Winch as explosion proof traction,hoist power equipment,it is especially us in mining,oil field,geology drilling work, highly combustible and explosion hazard place.
Wire Rope Winch Offshore Air Winch is a kind of manual operated single drum type air winch. Air Winch adopts compressed air as air winch's power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.
Wire Rope Winch Offshore Air Winch is a kind of manual operated single drum type air winch. Air Winch adopts compressed air as air winch's power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.
Product Parameters
| Model | JQHS-20 *18 | JQHS-30* 12 | JQHS-50* 12 | JQHS-100* 8 | JQH-5* 48 | JQH-10* 24 |
| Rated Pulling force | 20KN | 30KN | 50KN | 100KN | 5KN | 10KN |
| The maximum speed of wire rope | 18m/min | 12m/min | 12m/min | 8m/min | 48m/min | 24m/min |
| Rated Power | 5.6kw | 12kw | 16kw | 30kw | 2.6kw | 3.6kw |
| Rated Intake Air Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Rated Air consumption | 5m3/min | 10m3/min | 12.7m3/min | 24m3/min | 2.0m3/min | 2.3m3/min |
| Rope capacity | 100m | 200m/400m | 200m/400m | 200m | 80m | 80m |
| The diameter of Wire Rope | 12mm | 16mm | 18.5mm | 24mm | 8mm | 10mm |
| Overall size | 560* 360* 460mm | 1250* 500* 700mm | 1300* 520* 760mm | 1500* 720* 920mm | 560* 360* 420mm | 590*380* 460mm |
| Weight | 200kg | 500kg | 550kg | 1100kg | 130kg | 160kg |
