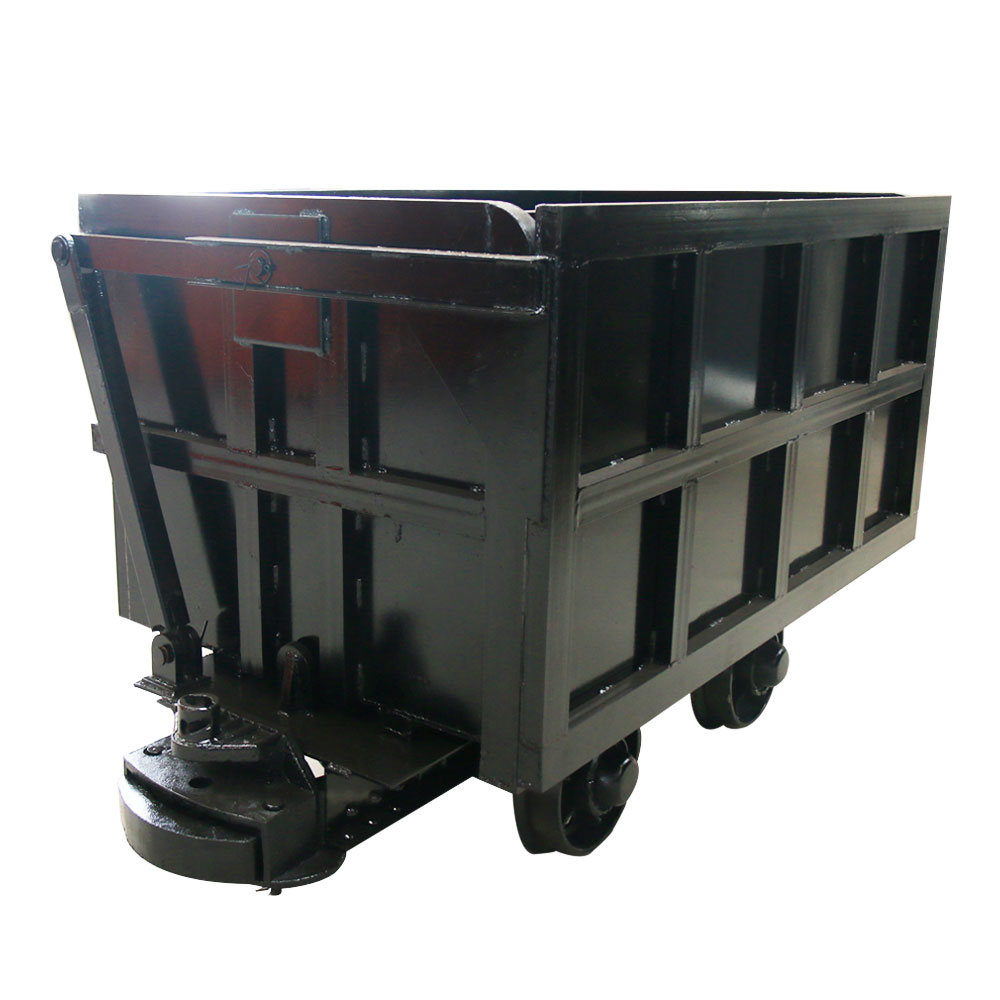

MCC2 Single-side Curved Rail Dumping Mining Car
ABOUT US
The mine car is used for mine and construction, load stone, coal, minerals etc. There are V and U style mine car.
Bucket tipping mine cars are suitable for the surface and underground mining of metal mine or other mine, to transport the ore, waste rocks and other materials along the underground tunnels and the surface working site.
The mine car is used for mine and construction, load stone, coal, minerals etc. There are V and U style mine car.
Bucket tipping mine cars are suitable for the surface and underground mining of metal mine or other mine, to transport the ore, waste rocks and other materials along the underground tunnels and the surface working site.
-
MCC2
-
China Coal Group
| Quantity: | |
|---|---|
Product Description
Durable side drop mining car for coal or ore is an easy operation machine. It is suitable for the surface and underground mining of metal mine or other mine, to transport the ore, waste rocks and other materials along the underground tunnels and the surface working sites.
Features of MCC1.6 Side-Discharging Mining Car
1) High reliability
2) Long service time
3) Low operational costs
4) Made by high quality steel
5)High stress area welds eliminated
6)Mass and section thickness optimized
7)Simplified state of the art mainframe and easy to operate
8)Easy replacement of wear and spare parts
The side dump tramcar is driven by a tractor and a winch and can be combined with a rock drill, a slag raking machine [a vertical claw rock loader] and an ore sliding gate discharging system for loading. The ore lumpiness is not more than 500 mm. According to the load volume of the tramcar, after loading, it is led to a special curved rail unloading mechanism (the operating speed is not more than 1 m/s) by traction power. When the trunk is turned to the horizontal to form the maximum unloading angle, the door is also opened to the maximum extent. At this time, the ore car unloading has been completed. When returning, the tramcar automatically closes in place through the curved rail door.
Side dump tramcar is a kind of efficient and self unloading running equipment, which has no capacity and needs to be used together with the traction locomotive. This vehicle is applicable to the tunnel, indoor and outdoor rail transportation operations of mines, tunnels, engineering construction and other departments. The gauge is 600mm, 762mm and 900mm for users to choose. The truck is suitable for loading ore rock and sand with a block size of more than 500mm. When loading blocky materials, its free fall height should be less than 1m (from the top of the car box).
The advantages of the single side curved rail side dump tramcar are that it has larger volume than the tipper tramcar and the fixed tramcar, and it can unload automatically and stably. Due to the characteristics of this unloading mode, the curved rail unloading space is small, generally only 5.2 meters long, and the unloading angle can still reach 55 degrees, which effectively saves the development space of the shaft and reduces the size of the chamber. The unloading distance is short, and the tunnelling volume of coal bunker and parking lot is only one third of that of other trams; Because the unloading curved track is symmetrical, the side unloading tramcar can be unloaded in both directions.
Single side curved rail side dump tramcar is generally pulled by electric locomotive or lifting winch, which is a narrow gauge railway transport vehicle for transporting ore, waste rock, gangue, underground materials, coal and other bulk materials in the mine shaft. One side curved rail side dump tramcar is a relatively new type of mine transport equipment. The mechanism of self dumping tramcar is more complex than that of V-type tipper tramcar, and the movement on the curved track automatically unloads.
Advantages of single side curved rail side dump mineral products
1. The single side curved rail side unloading type mineral fat tipping bucket tramcar and fixed tramcar have larger volume and can unload automatically and stably.
2. The unloading space of the single side curved track side unloading mine is small, generally only 5.2 meters long, and the unloading angle can still reach 55 degrees, which effectively saves the development space of the roadway and reduces the size of the tunnel.
3. The unloading distance is short, and the excavation volume of coal bunkers and parking lots is only one third of that of other mines.
4. Because the unloading curved track is symmetrical, it can realize the bidirectional unloading of the side unloading mine.
Product Parameter
Model | MCC1.2 | MCC1.6 | MCC2 | MCC2.5 | MCC3 | MCC3.5 | MCC4 | MCC5 | MCC6 |
Volume(m³) | 1.2 | 1.6 | 2 | 2.5 | 3 | 0.5 | 4 | 5 | 6 |
Load(T) | 3 | 4 | 5 | 6.25 | 7.5 | 8.5 | 10 | 12.5 | 10 |
Gauge(mm) | 600/720/900 | 600/720/900 | 600/720/900 | 600/720/900 | 600/720/900 | 600/720/900 | 600/720/900 | 600/720/900 | 600/720/900 |
Wheelbase(mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 2000 | 2000 | 2000 |
Wheel Diameter(mm) | 300 | 350/400 | 400 | 400 | 350 | 350 | 350 | 350 | 350 |
Traction Height(mm) | 320 | 320 | 320 | 320 | 320 | 320 | 430 | 430 | 500 |
Traction Speed(Km/h) | 12 | 12 | 12 | 12 | 12 | 12 | 8 | 8 | 8 |
Uninstall Angle | 40 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
Tuming Radius | 10 | 12 | 12 | 12 | 12 | 12 | 15 | 15 | 15 |
Weight(Kg) | 1000 | 1663 | 1830 | 2505 | 3050 | 3500 | 3850 | 4350 | 4900 |
