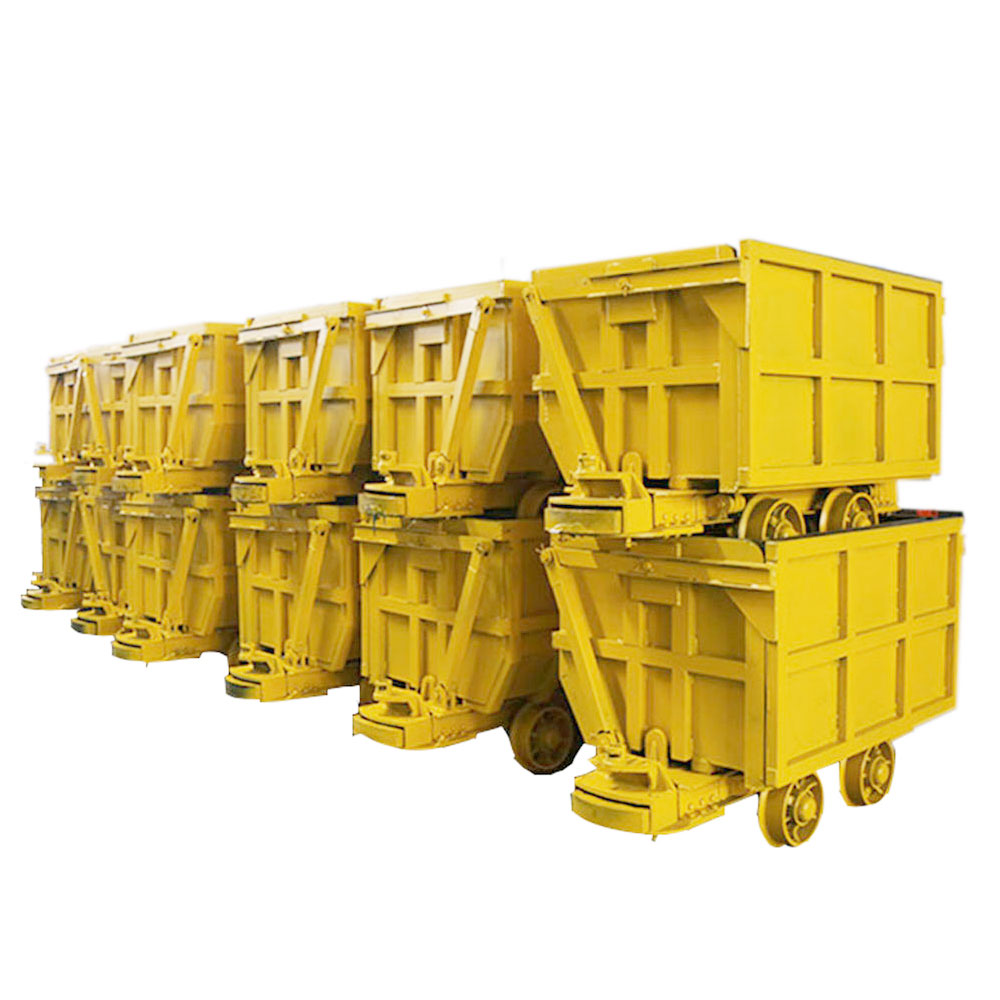

MCC3 Side Dump Mining Rail Car

The side dump tramcar is driven by a tractor and a winch and can be combined with a rock drill, a slag raking machine [a vertical claw rock loader] and an ore sliding gate discharging system for loading. The ore lumpiness is not more than 500 mm. According to the load volume of the tramcar, after loading, it is led to a special curved rail unloading mechanism (the operating speed is not more than 1 m/s) by traction power. When the trunk is turned to the horizontal to form the maximum unloading angle, the door is also opened to the maximum extent. At this time, the ore car unloading has been completed. When returning, the tramcar automatically closes in place through the curved rail door.

Side dump tramcar is a kind of efficient and self unloading running equipment, which has no capacity and needs to be used together with the traction locomotive. This vehicle is applicable to the tunnel, indoor and outdoor rail transportation operations of mines, tunnels, engineering construction and other departments. The gauge is 600mm, 762mm and 900mm for users to choose. The truck is suitable for loading ore rock and sand with a block size of more than 500mm. When loading blocky materials, its free fall height should be less than 1m (from the top of the car box).

Single side curved rail side dump tramcar is generally pulled by electric locomotive or lifting winch, which is a narrow gauge railway transport vehicle for transporting ore, waste rock, gangue, underground materials, coal and other bulk materials in the mine shaft. One side curved rail side dump tramcar is a relatively new type of mine transport equipment. The mechanism of self dumping tramcar is more complex than that of V-type tipper tramcar, and the movement on the curved track automatically unloads.

Advantages of single side curved rail side dump mineral products

1. The single side curved rail side unloading type mineral fat tipping bucket tramcar and fixed tramcar have larger volume and can unload automatically and stably.

2. The unloading space of the single side curved track side unloading mine is small, generally only 5.2 meters long, and the unloading angle can still reach 55 degrees, which effectively saves the development space of the roadway and reduces the size of the tunnel.

3. The unloading distance is short, and the excavation volume of coal bunkers and parking lots is only one third of that of other mines.

4. Because the unloading curved track is symmetrical, it can realize the bidirectional unloading of the side unloading mine.
