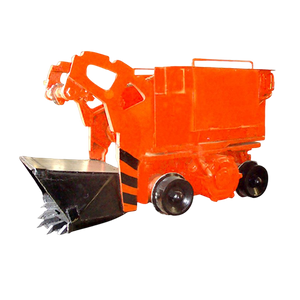

Z-17W Mining Mucking Machine
Pneumatic Rock Loader Rocker Shovel performance characteristics: downhole direct unloading bucket type pneumatic rock loader. Its purpose is to put the rock down into the tub. To achieve the mechanization of loading work, thereby reducing the labor intensity of workers, improve productivity. This direct unloading rocker ZQ-26 aerodynamic rock loader is mainly used for the horizontal exploration of pneumatic equipment, roadway, or tunnel roadway can also be used for cavern excavation or mine loading work.
Z-17W Mining Mucking Machine
Pneumatic Rock Loader Rocker Shovel performance characteristics: downhole direct unloading bucket type pneumatic rock loader. Its purpose is to put the rock down into the tub. To achieve the mechanization of loading work, thereby reducing the labor intensity of workers, improve productivity. This direct unloading rocker ZQ-26 aerodynamic rock loader is mainly used for the horizontal exploration of pneumatic equipment, roadway, or tunnel roadway can also be used for cavern excavation or mine loading work.
-
Dual Function Of Collecting And Conveying
-
Safety And Environmental Protection
| Quantity: | |
|---|---|
Product Description
Small Tunnel Mucking Loader body of mini wheel muck shovel loader is very compact ,also various attachments can be used on mini wheel muck shovel loader to finish diffrent works with high effiency .muck shovel loader are very popular in Landscaping , garden ,park , road maintenance , construction , rental company and so on . shovel loader is a small machine , but has big function .
Pneumatic Rock Loader Rocker Shovel performance characteristics: downhole direct unloading bucket type pneumatic rock loader. Its purpose is to put the rock down into the tub. To achieve the mechanization of loading work, thereby reducing the labor intensity of workers, improve productivity. This direct unloading rocker ZQ-26 aerodynamic rock loader is mainly used for the horizontal exploration of pneumatic equipment, roadway, or tunnel roadway can also be used for cavern excavation or mine loading work .
The rock loader is easy to work, accurate in lifting and positioning, fast in transporting materials, safe, reliable, environmentally friendly, efficient, and labor saving. It fully conforms to ergonomics, can adapt to various complex working environments, and its performance structure ranks first among similar products in China.
Four features of rock loader:

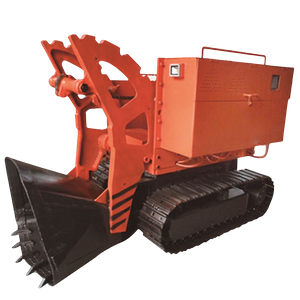

1. Crawler rock loader adopts efficient hydraulic pump and hydraulic confluence technology, with high working efficiency, reliable system and super working range, which can give play to fast and perfect working efficiency under any conditions.
2. Crawler rock loader adopts slip technology and local turning system to ensure driving demand under various harsh conditions.
3. FR advanced modular technology is adopted for stamping and welding of the body to strengthen the body and ensure that there is no fracture. All joints of the whole machine adopt high wear-resistant composite shaft sleeves for ease.
4. The heat dissipation system of crawler rock loader adopts constant temperature automatic electronic fan control to ensure the normal operation under high temperature climate.
Introduction and classification of rock loader
The rock loader has the characteristics of high rock loading efficiency, simple structure, good reliability, convenient operation, wide application range, etc. It can be used not only in the drift, but also in the inclined roadway below 30 °. It is a major mechanical equipment to improve the tunneling speed and realize the mechanization of roadway tunneling.
It is mainly used in coal mine, metallurgical mine, tunnel and other engineering roadway excavation with mine car or bucket for loading.
⑴ According to the form of its working mechanism, it can be divided into rake bucket type, bucket type, crab claw type, vertical claw type and grab bucket type.
(2) There are also three types of track wheel type, crawler type and rubber wheel type according to their traveling modes.
⑶ According to the continuity of the action of the working mechanism, there are intermittent and continuous types. There are also rock drilling rigs and loaders integrated to form a rock drilling machine capable of both drilling and loading.
Maintenance of rock loader
1. Remove the soil and oil dirt on the surface of the parts of the crawler excavator loader, and wash the crawler part in time.
2. Check whether the fasteners of the machine body are loose and fasten the loose parts.
3. Check whether the hydraulic oil is sufficient and whether there is leakage, find out the cause in time and supplement. Note: When checking the leakage of the hydraulic pipeline, the maintenance of the hydraulic pipeline can only be carried out after the working device is lowered to the ground and the pressure in the motor and system is released.
4. Check the electric cabinet and electric circuit for abnormalities and damages.
5. Check whether the turning device is flexible
6. Check whether each hydraulic cylinder can expand and contract freely, whether the cylinder has scratches, and whether the oil pipe and joint have leakage. If any, find out the cause in time and eliminate it
7. Check whether the pin shaft parts are flexible, and add lubricating oil at each oil cup and pin shaft parts.
8. At the end of the day, the whole track shall be inspected, cleaned and maintained as necessary.
Product Parameters
Model | Z-17W | Z-17WYK | ZLKY20 | Z-20W | Z-20WYK | ZLKY26 | Z-30W | Z-30WYK | ZLKY45 | ZQ26 | |
Applicable roadway size W*H/m | 1.7*2 | 1.7*2 | 2*2.2 | 2*2.2 | 2*2.2 | 2.2*2.5 | 2.2*2.5 | 2.2*2.5 | 2.2*2.5 | 2.2*2.5 | |
Gauge | 600//762/900mm ( customized ) | ||||||||||
Loading Capacity m3/h | 20-30 | 30-40 | 35-45 | 30-40 | 40-50 | 50-60 | 50-60 | 60-70 | 80-100 | 50-60 | |
Bucket volume m2 | 0.17 | 0.17 | 0.2 | 0.2 | 0.2 | 0.26 | 0.3 | 0.3 | 0.45 | 0.26 | |
Loading width mm | 1700 | 1700 | Arbitrarily | 2000 | 2000 | Arbitrarily | 2400 | 2400 | Arbitrarily | 2700 | |
Bucket working height mm | 1920 | 1920 | 1920 | 2180 | 2180 | 2240 | 2240 | 2240 | 2240 | 2240 | |
Bucket down height mm | 1320 | 1320 | 1210 | 1360 | 1360 | 1360 | 1360 | 1460 | 1250 | ||
Gradeability | 25° | 25° | 25° | ||||||||
Size | L mm | 2120 | 2120 | 2287 | 2480 | 2480 | 2620 | 2620 | 2660 | 2400 | |
W mm | 1130 | 1130 | 1372 | 1380 | 1380 | 1380 | 1380 | 1520 | 1090-1380 | ||
H mm | 1200 | 1200 | 1415 | 1460 | 1460 | 1545 | 1650 | 1650 | 1500 | ||
Travel motor power kw | 10.5 | 10.5 | Hydraulic Motor 5000N/ 2units | 10.5 | 10.5 | Hydraulic Motor 5000N/ 2units | 13 | 13 | Hydraulic Motor 5000N/ 2units | 8.83 | |
Bucket motor power kw | 10.5 | 10.5 | 13 | 13 | 13 | 13 | 15 | 15 | 15 | 14.71 | |
Hydraulic motor power | 1.5 | 7.5 | 1.5 | 7.5 | 2.2 | 11 | |||||
Weight kg | 3200 | 3300 | 3700 | 3750 | 3800 | 3900 | 4500 | 4500 | 4800 | 2700 | |
Z- Rock loader; W-No tangled rope; YK-remote control; L-Crawler type; ZLKY-Hydraulic remote control crawler rock loader | |||||||||||
